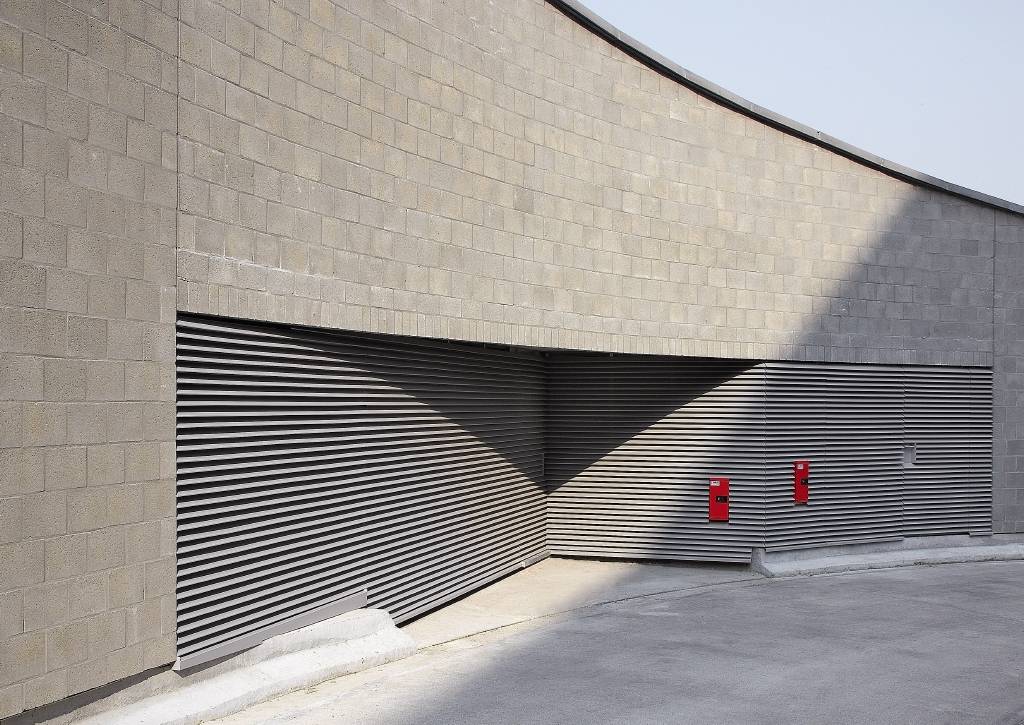

Continuous Louvre Blade Linius L.060HF

Verified by manufacturer 2 months ago

Anodized

Renson Fabrications Ltd Variant:

Extruded aluminium blade with large free area.

Jump to:
+44 (0)1622 754123 Website

Application

  • Suitable for continuous louvre systems.
  • Particularly suitable where a large airflow is required.

Description

Extruded aluminium louvre profile with minimal air flow resistance. Particularly suitable where a large airflow is required in combination with considerable optical density and a sharp design.


Features and benefits:

  • Extruded aluminium profile.
  • Pitch of 60 mm.
  • Minimal air flow resistance.
  • Anodized or powder-coated finish.
  • Mesh fixed to rear of the support structure.
  • Blades clip-locked onto their supports.

General information

Color

Other

Silver

Finish

Powder-coated

Anodized

Material

Aluminium

Shape

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_48_02 Aluminium louvre bladesPrimary

CAWS

L10/54 Louvres

H11/437 Louvres

L10/650 Metal louvres

H11/140 Louvres

Product range

Continuous Louvres System / Linius Blades With Large Free Area

Specification data - Aluminium louvre blades

Profile

'Z' profile.

Material

Extruded aluminium alloy (EN AW 6063 T66).

Finish

Anodized.

Guidance for specification option:

20 micron.

Colour

Self-coloured.

Texture

Guidance for specification option:

Consult manufacturer and insert requirements.

Mounting arrangement

Clip fixing to mullions.

Blade support clips

Single blade support (L.060HF.11), 28 mm wide.

Double blade support for thermal expansion (L.060HF.12), 45 mm wide.

Guidance for specification option:

Connecting piece for two blades.

Pitch

60 mm.

Height

60 mm.

Depth

78 mm.

Air flow

K-Factor, supply: 4.60.
K-Factor, extraction: 5.17.

Manufacturer guidance

Aerodynamic resistance to air flow.

Free area

Visual free area: 90%.
Physical free area: 76%.

Integral accessories

Mesh fixed to rear of the support structure.

Doors

Not required.

Single door with standard Renson® hardware and rotating on pivot.

Double doors with standard Renson® hardware and rotating on pivot.

Sustainability data

Country of product manufacture

United Kingdom
