Continuous Louvre Blade Linius L.050
Verified by manufacturer 1 month ago
Anodized
Anodized

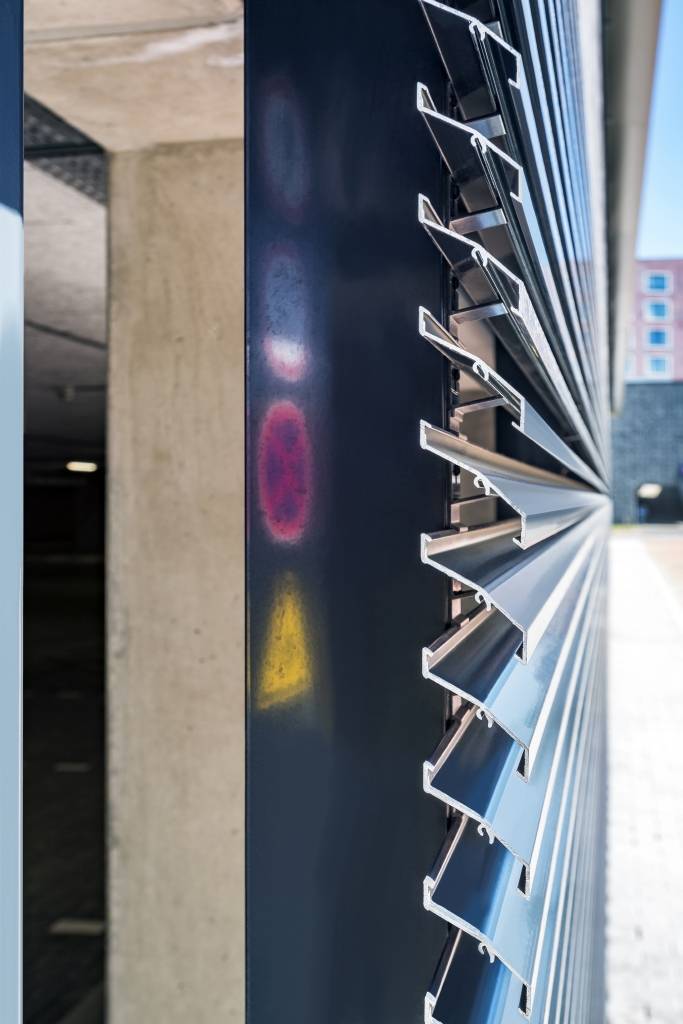

Continuous extruded aluminium blade.
Application
Suitable for continuous louvre systems.
Description
Heavy-duty extruded aluminium profile with very high air flow.
Features and benefits:
- Extruded aluminium profile.
- Pitch of 50 mm.
- Variable 50 to 100 mm pitch is possible with blade supports of the type L.050.13 and L.050.14.
- Very high air flow.
- Anodized or powder-coated finish.
- Mesh fixed to rear of the support structure.
- Optional top and bottom blades for optimal finish.
General information
Color | Other |
Finish | Powder-coated Anodized |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/54 Louvres L10/650 Metal louvres H11/437 Louvres H11/140 Louvres |
Product range |
Specification data - Aluminium louvre blades
Profile | 'Z' profile. |
Material | Extruded aluminium alloy (EN AW 6063 T66). |
Finish | Anodized.Guidance for specification option: 20 micron. |
Colour | Self-coloured. |
Texture | Guidance for specification option: Consult manufacturer and insert requirements. |
Mounting arrangement | Clip fixing to mullions. |
Blade support clips | Single blade support, 50 mm pitch (L.050.11), 28 mm wide. Double blade support for thermal expansion, 50 mm (L.050.12), 34 mm wide. Guidance for specification option: Connecting piece for two blades. Single blade support, 50–100 mm pitch (type L.050.13), 28 mm wide. Double blade support for thermal expansion, 50–100 mm pitch (L.050.14), 34 mm wide. Guidance for specification option: Connecting piece for two blades. |
Pitch | 50 mm. |
Height | 41 mm. |
Depth | 56 mm. |
Air flow | K-factor: 12.14. Manufacturer guidanceAerodynamic resistance to air flow. |
Free area | Visual free area: 70%. |
Special top blade | Not required. Top blade (L.050.02). Guidance for specification option: Available for attractive top connection. |
Blade | Not required. Long bottom blade (L.050.03). Short bottom blade (L.050.04). Manufacturer guidanceBottom blade. |
Integral accessories | Mesh fixed to rear of the support structure. Mesh with integrated insect netting (L.050IM1) fixed to the rear of the support structure. Mesh with integrated bird netting (L.050IM2) fixed to the rear of the support structure. |
Doors | Not required. Single door with standard Renson® hardware and rotating on pivot. Double doors with standard Renson® hardware and rotating on pivot. |
Sustainability data
Country of product manufacture | United Kingdom |
